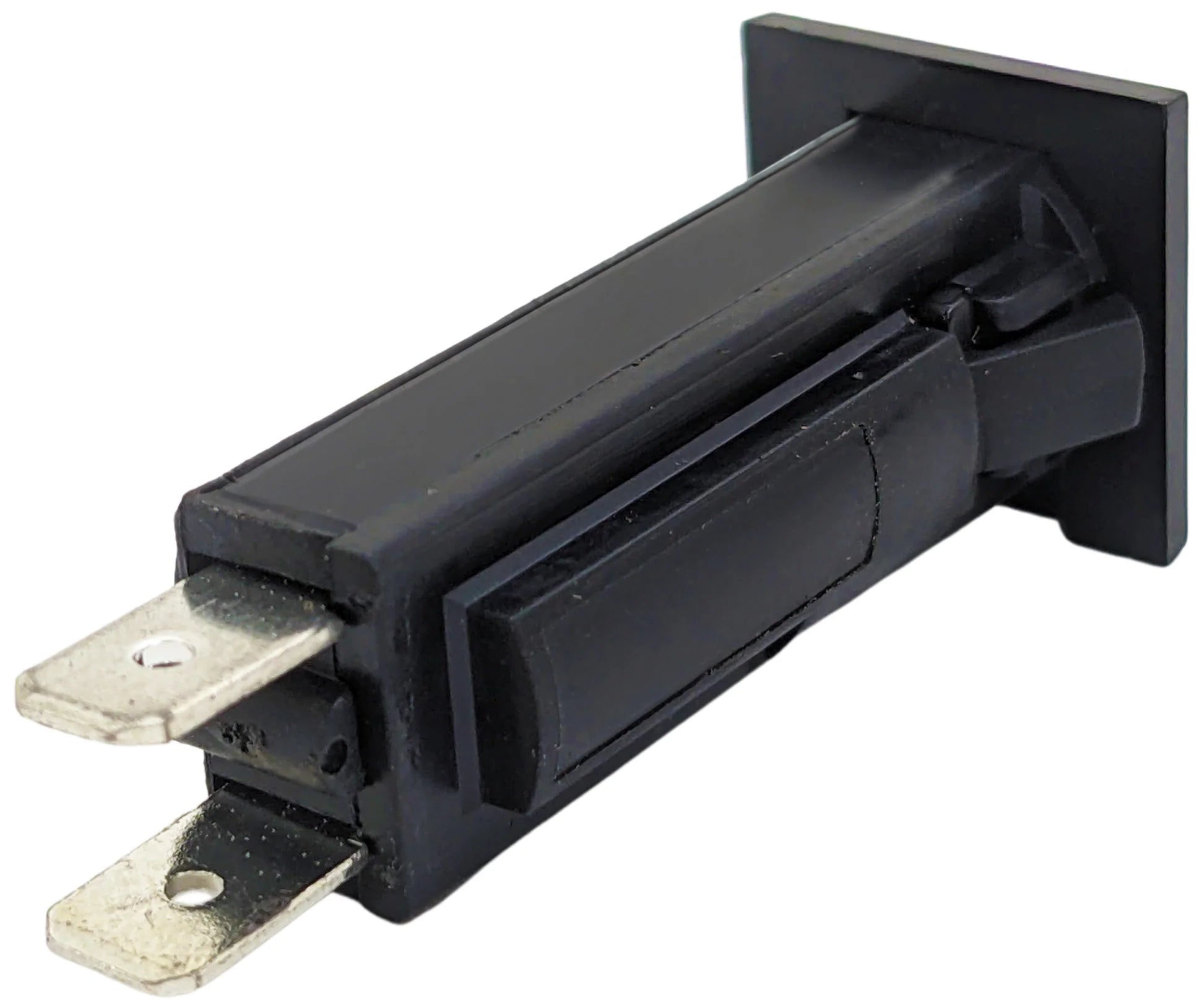

0.25A Thermal Circuit Breaker, 1 Pole, 250V AC / 32V DC, Snap-in Panel Mount with Push to Reset Actuator (W28 XQ1A 0.25) - Ideal for Automotive, Marine, and Industrial Electrical Protection

Product Description

• 3 A circuit breaker with 0.250-inch quick connect, snaps into 0.032 to 0.062-inch thick panel
• Number of Poles: 1

• Overload: Thermal
• Max voltage ratings 250V AC, 32V DC
• Dielectric strength 1500V AC
• Trip Time: 4.5 to 28 s
• High precision and low cost. Replaces slow blow glass cartridge fuse.
• Button extends for visual trip indication

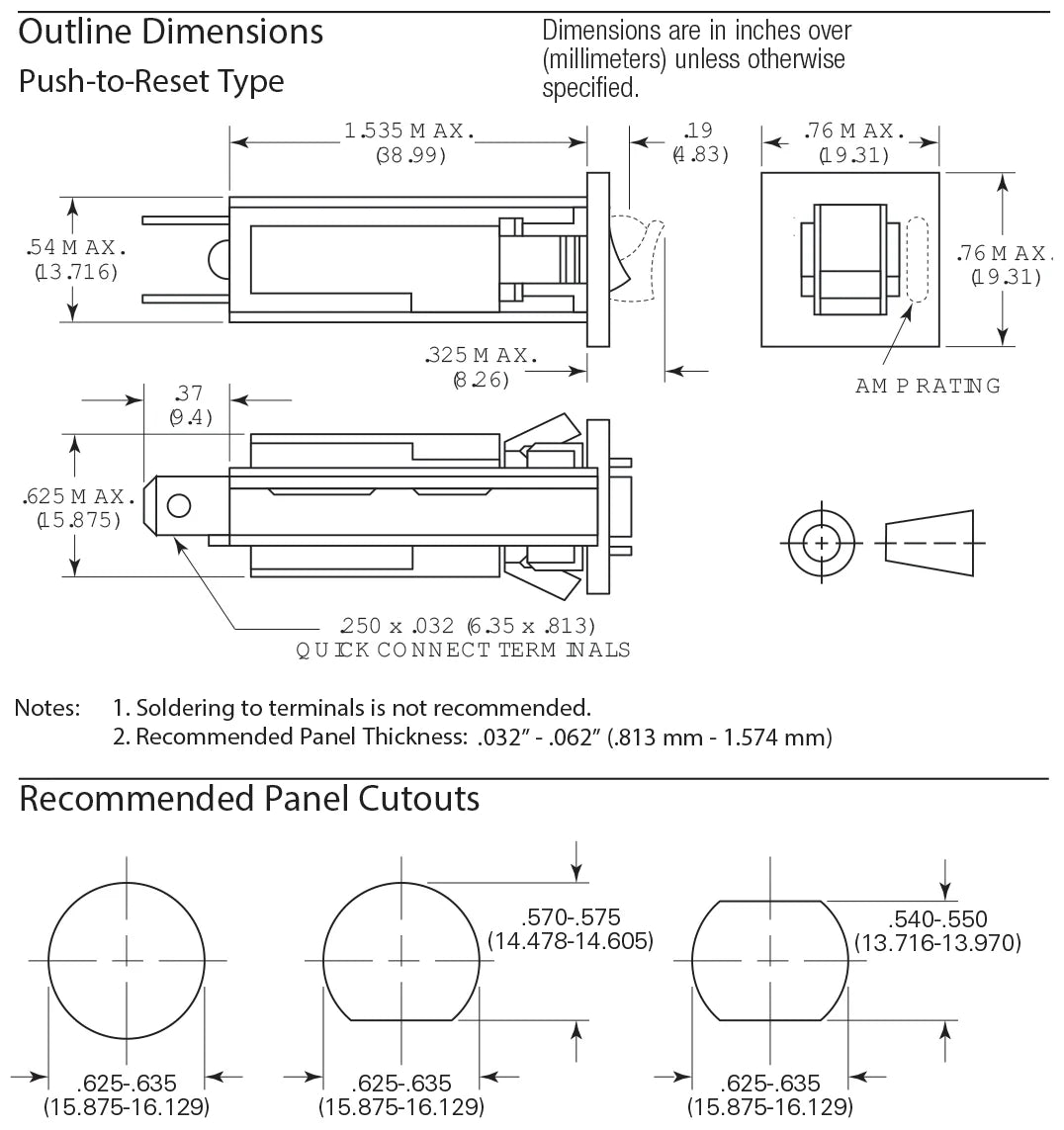

• Mounting Hole Size: Dia. 0.635 x H 0.625 in
