Premium Black SMD Test Clip Grabber for DIY Electronics - High-Quality Spring-Loaded IC Test Hook for Circuit Board Repair & Prototyping (Ideal for Arduino, Raspberry Pi Projects)
$1.65 $3
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:29 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:35816845
Guranteed safe checkout
Product Description

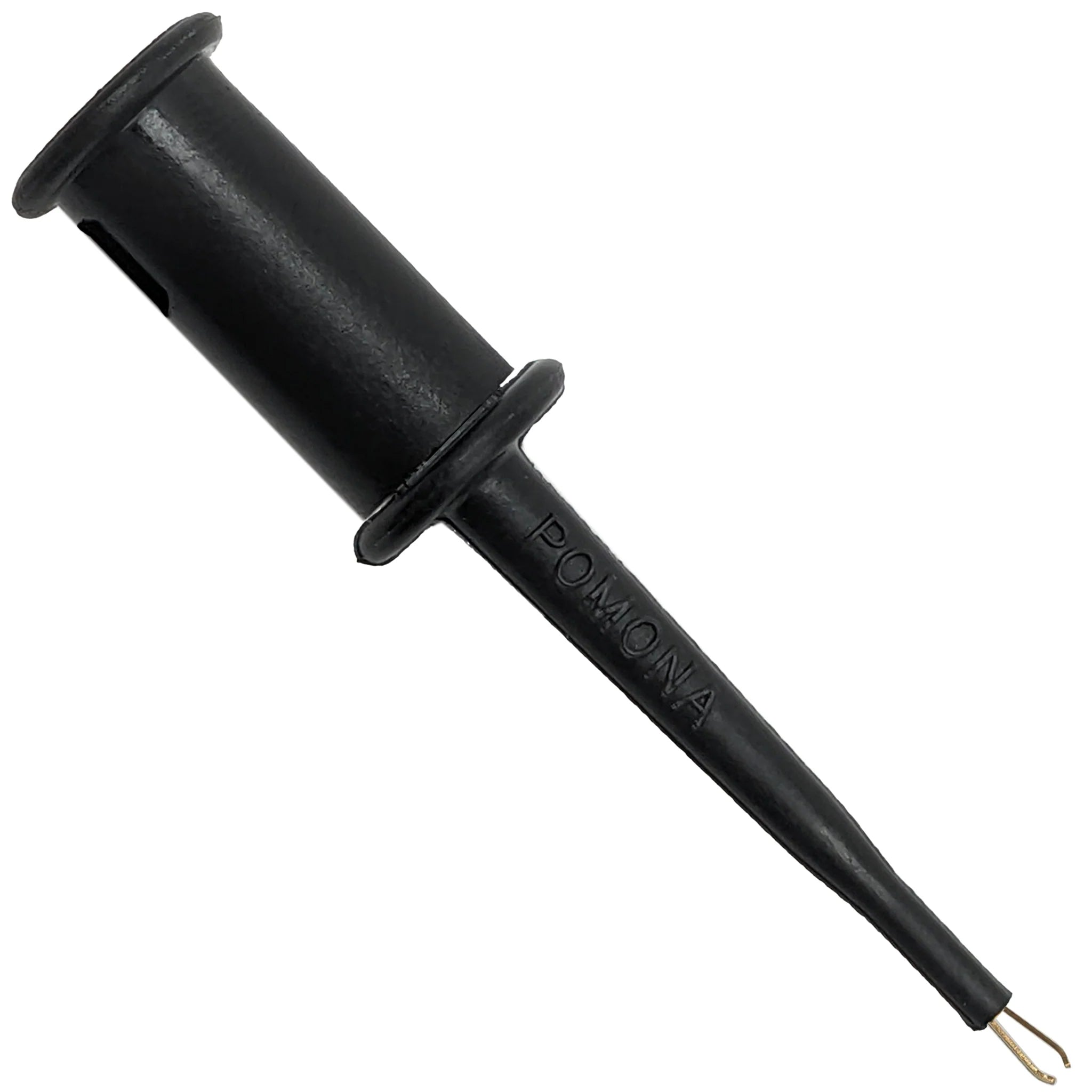

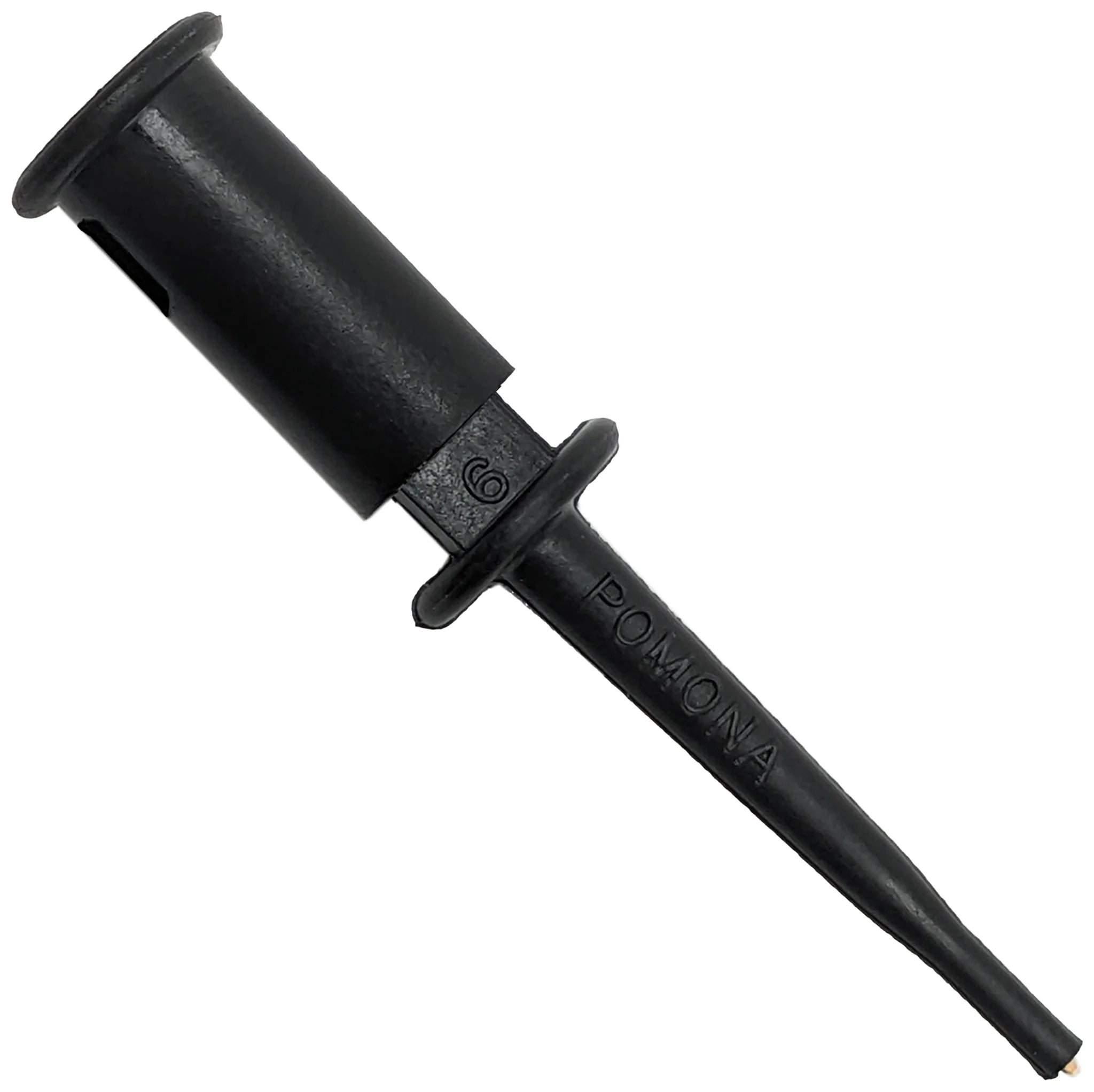

The SMD Grabber test clip is especially suited for testing surface mounted packages on centers as small as 0.76mm (0.030"). Pincer-like contact grasps individual legs of SMDs such as SOIC, SOJ, PCC, etc. Its circular design and small size have been developed for easy use and handling.

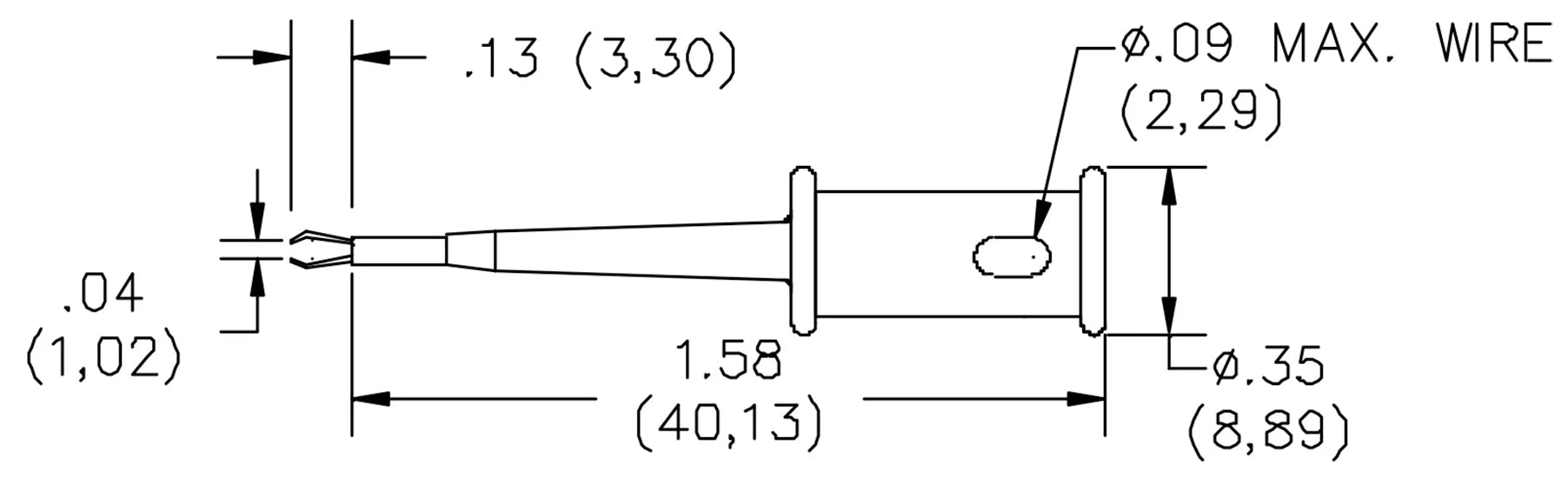

- Hook, Pincer Opening: 0.040" (1.02mm)
- Length: 1.580" (40.13mm)
- Termination: Solder, 0.090" (2.29mm) Wire Opening
- Color: Black
Ratings:
- Operating Temperature: +102° C. (+216° F) Max.
- Operating Voltage: 30VAC / 60VDC Max.
- Current: 0.5 Amperes
Simplified Assembly Procedure:
- Pull off thumb cap to expose contact connection.
- Thread wire through thumb cap and strip 3.18mm (1/8").
- Insert stripped end through hole on contact and solder.
- Slide thumb cap back onto contact.
