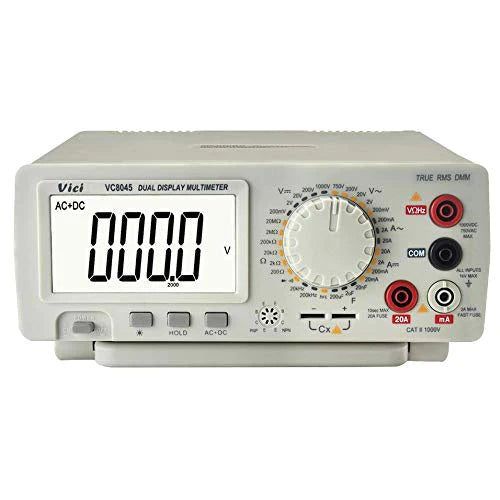

4 1/2 Digit True RMS Digital Multimeter with LCD Display & Backlight - Professional Bench Type Multimeter for Electronics Testing, Electrical Repairs, and DIY Projects

Product Description

• 4½ digit large LCD display with backlight and over-range indication
• Measures DCV, ACV, DCA, ACA, Ω, CAP, Hz, hFE, diode and continuity test functions
• Max. voltage measuring: DC 1000V or AC 750V, resolution: 10uV
• Max. current measuring: 20A
• Features polarity automatic switch, data hold, overload protect. AC measuring is performed by high accuracy true-RMS with wide bandwidth measuring for AC flow of any any waveform or AC+DC. Measuring way: double integral A/D converter.

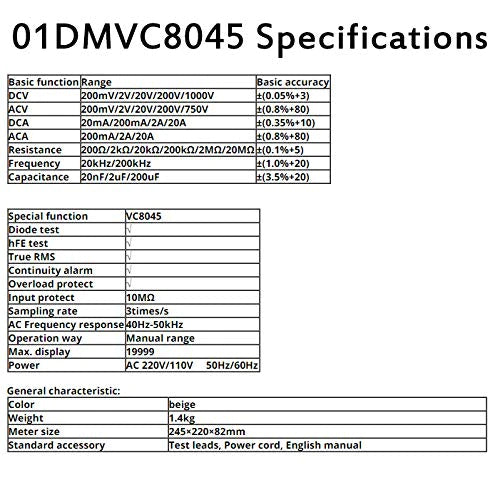

Specifications:

• DCV Range: 200mV/2V/20V/200V/1000V, Basic Accuracy ±(0.05%+3)
• ACV Range: 200mV/2V/20V/200V/750V, Basic Accuracy ±(0.8%+80)
• DCA Range: 20mA/200mA/2A/20A, Basic Accuracy ±(0.35%+10)
• ACA Range: 200mA/2A/20A, Basic Accuracy ±(0.8%+80)
• Resistance Range 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ, Basic Accuracy ±(0.1%+5)
• Frequency Range 20kHz/200kHz, Basic Accuracy ±(1.0%+20)
• Capacitance Range 20nF/2uF/200uF, Basic Accuracy ±(3.5%+20)

Features:

• Diode test
• hFE test
• True RMS
• Continuity alarm
• Overload protect
• Input protect: 10MΩ
• Sampling rate: 3 times/s
• AC Frequency response: 40Hz-50kHz
• Operation way: Manual range
• Max. display: 19999
• Power: AC 220V/110V 50Hz/60Hz via switch on back of unit
