Auto Ranging True RMS Digital Multimeter with Backlit LCD Display (6000 Counts) - Measures AC/DC Voltage, Current, Resistance, Capacitance, Frequency - Perfect for Electricians, DIY Home Repairs & Automotive Diagnostics

Product Description

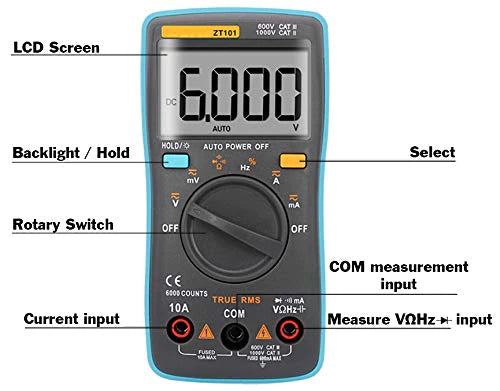

The ZT101 is a battery powered, True RMS auto-ranging digital multimeter with 6000 counts and backlit LCD display. It can be used to measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, diode, and continuity. It is compact and lightweight for carrying in your hand or pocket and also features a fold out stand for easy viewing. It is powered by 2x AAA batteries (included) and comes with leads, drawstring carry bag, and instruction manual. Measures 2.55" x 1.25" x 5.11" and weighs about 4 ounces (4.5 ounces with batteries).

Features:

• Battery powered, True RMS auto-ranging digital multimeter with 6000 counts and backlit LCD display
• Measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, diode, and continuity
• Compact and lightweight for carrying in your hand or pocket, also features a fold out stand for easy viewing
• Comes with leads, drawstring carry bag, and instruction manual
• Powered by 2x AAA batteries (included)

Specifications:

• DC voltage measurement range: 1000V to 0.1mV
• AC voltage measurement range: 750V to 0.1mV
• DC current measurement range: 10A to 0.1uA
• AC current measurement range: 10A to 0.1uA
• Resistance measurement range: 0.1 to 60MΩ
• Width ratio measurement range: 1% to 99%
• Frequency measurement range: 10MHz to 1Hz
• Capacitance measurement range: 6000uF to 10pF
• Display: 6000 counts
• Ranging: Auto
• True RMS measurement
• Material: ABS
• Update Rate: 3 times/second
• Data Hold
• Backlight
• Low Battery Alert
• Auto Power Off
• Measurement mode: Double-integral style A/D transform
• Polarity automatic recognition
• 10A large current measurement, mA level small current measurement
